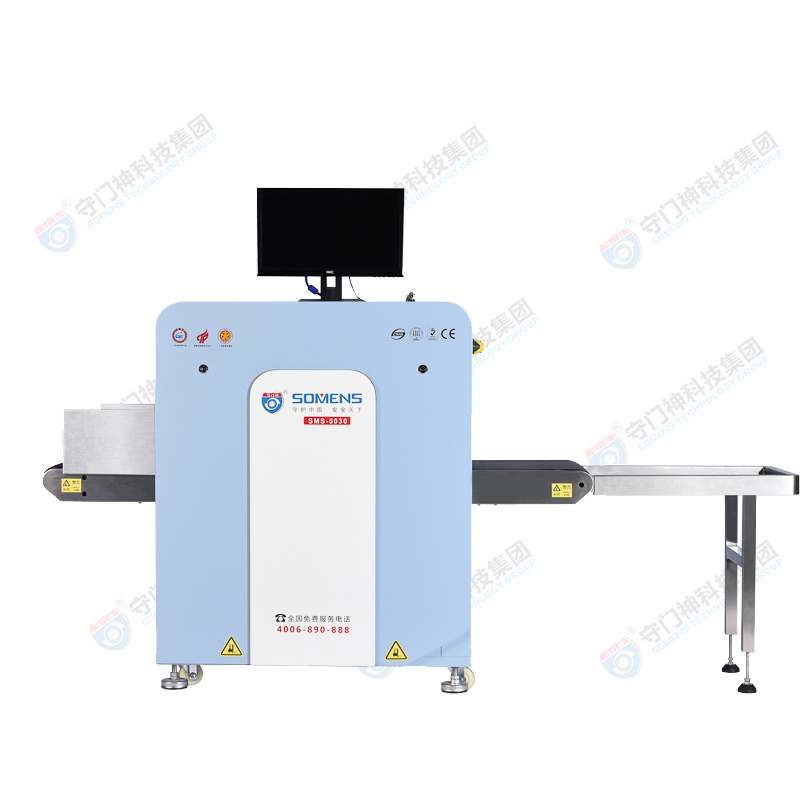

| Product introduction:
The new generation 5030A security inspection equipment of the goalkeeper technology group, 6 hardware upgrades, the software has been optimized up to 321 items, and the quality and performance have made a huge breakthrough.
| widely used in:
Party and government organs, public security armed police, courts, procuratorates, prisons, labor camps, detention centers, drug rehabilitation centers, subways, museums, embassies, customs stations, port terminals, tourist attractions, sports and cultural venues, conference centers, exhibition centers, large-scale events, Important departments of sports events, scientific research institutions, postal securities, logistics express, border defense forces, financial power, hotel schools, factory enterprises and other public places. It is mainly used to detect prohibited items and flammable and explosive items hidden in small items, parcels, mail, small bags, suitcases, satchels, backpacks, etc., such as controlled knives, guns, detonators, fireworks, alcohol, Gasoline sulfuric acid, etc.
|
SOMENS-5030A Technical indicators
|
Channel size
|
500 (wide) ╳ 300 (height) mm
|
Conveyor speed
|
0.22m/s
|
Conveyor maximum load
|
80Kg
|
Film security
|
ISO1600 film security
|
Resolution
|
Single solid copper wire with diameter of 0.0787mm
|
Spatial resolution
|
Level: 1.0 mm diameter Vertical: 1.3 mm diameter
|
Penetration
|
10mm steel plate
|
Tube voltage
|
100--160 KV (adjustable)
|
Tube current
|
0.4~1.2mA (adjustable)
|
Ray divergence angle
|
80°
|
Leakage dose
|
＜0.3μGy/h
|
Power loss
|
1.0KW (maximum)
|
Operating Voltage
|
220VAC(±10%) 50±3Hz
|
Cooling cycle
|
Sealed oil cooling / 100%
|
X-ray sensor
|
L-shaped photodiode array detector (multi-energy), 12-bit depth
|
Beam direction
|
Bottom type
|
monitor
|
High resolution 17 inch LCD
|
One-button shutdown
|
Shut down the key only, the device automatically shuts down safely, reducing equipment failure
|
Energy saving and environmental protection design
|
The object automatic sensing function, automatic baggage operation, no baggage in a static state; the lead curtain is coated with a protective film to avoid lead pollution to the human body and prolong the service life of the device.
|
Image resolution and gray image
|
Resolution: 1024 * 768; gray image: 4096
|
Image Processing
|
24bit real-time processing, color/black and white image, reverse image display, edge enhancement, object outline edge and image detail are more clear, image highlighting, image dimming, image before pulling back 20 pictures, alarm function, image retrieval
|
Image saving, selection, enlargement and recovery
|
Store 100,000 frames in real time, select 1-9 selections, and 2-68 times
Zoom in, the image display returns to the original state
|
Multi-energy color display
|
Organics are shown in orange, inorganics are shown in blue, and mixtures are shown in green
|
High energy, low energy penetration display and switching
|
Improve the contrast between the bright and dark areas of the image, making the easy-to-penetrate area and the difficult-to-penetrate area clearer.
|
Fault self-diagnosis function
|
Automatically judge when a fault occurs, promptly give a prompt message for easy maintenance
|
Auxiliary detection
|
Assist in detecting some typical dangerous items
|
Unique function
|
Date and time display, working status, image thumbnail display, operator ID, bag count, emergency stop, power-on self-diagnosis function, network interface, system operation and X-ray emission timing
|
Storage temperature / humidity
|
-20°C ~ +60°C / 20% ~ 95% (non-condensing)
|
Working temperature / humidity
|
0℃ ~ 45℃ / 20% ~ 95%(non-condensing)
|
Noise level
|
≤55dB
|
Unique features:
Simultaneous display of color black and white images, single date and time display, working status, dual image thumbnail display, operator identification code, baggage counting, emergency stop, power-on self-diagnosis function, network interface, system operation and X-ray emission Timing, conveyor working status prompt function, ray source, photoelectric switch status indication.
Software emergency stop button:
In case of emergency, the quick software clicks the emergency stop button to stop the belt from running more quickly and the ray generator stops working.
Over-increasing: Enhance the details of the image so that objects hidden behind thick objects are clearly displayed
Increase: Brighten the darker areas of the image so that objects hidden behind thick objects are clearly displayed
High wear: enhances the display effect of dark areas, making the display of difficult objects more visible
Low wear: enhances the display of bright areas, making the display of easy-to-penetrate objects more visible
Brighten/dark: Allows brightening/darkening effect on the entire image
Gray sweep: the image will be automatically grayscaled, the dark area will be gradually brightened, and the bright area will be gradually darkened.
Texture: Enhance the texture of the image
Smoothing: smoother image processing, contrast image clarity
Mirror: Mirror function provides real-time partial magnification, easy to observe the edges and details of the item
Image enlargement and reduction: the image can be enlarged to infinity and scaled down to the original image
Combination shortcut F1.F2.F3: One shortcut button uses three functions to process image effects at the same time
Remote software emergency stop button: In case of emergency, the belt stops working and the ray generator stops working.
